Outdoor crane is a portable lifting device commonly used in outdoor scenes, also known as small crane, portable crane, or mini crane.
It is compact in design, small in size, light in weight, easy to operate, and suitable for various work environments such as decoration, installation, maintenance, warehouse logistics, etc.

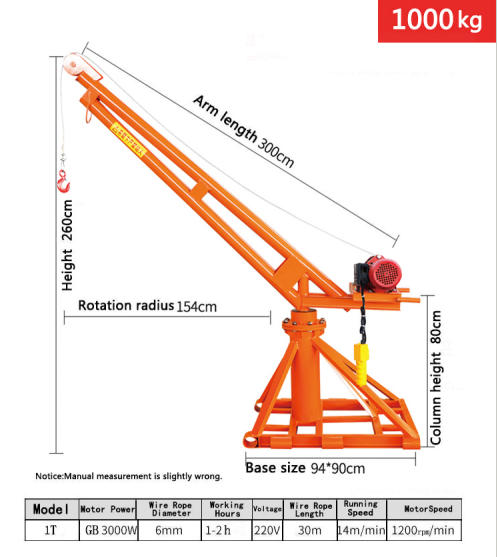

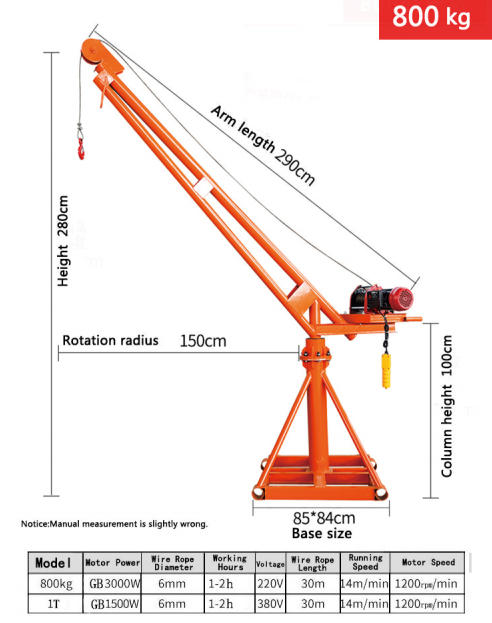

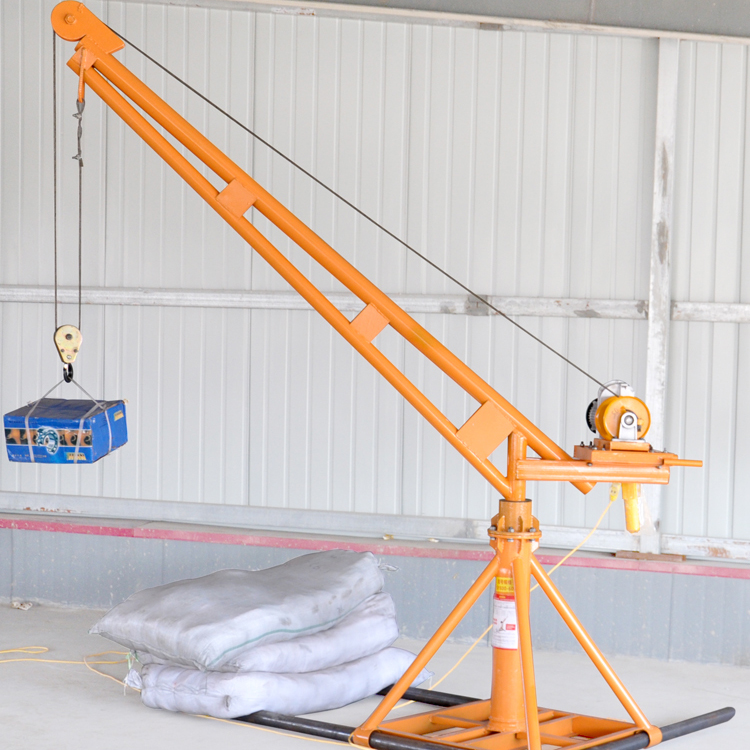

This equipment usually consists of two parts: the power unit and the bracket. The power unit includes components such as an electric motor, reducer, brake, and rope drum. Electric motors often use 380V voltage (some models support 220V) and have power-off braking and overheating protection functions; The bracket is composed of a main support rod and a cantilever suspension rod. The rotating arm can rotate 360 degrees and is equipped with a travel switch to prevent over lifting.
By operating the button to control the forward and reverse rotation of the motor, the steel wire rope can be retracted and lifted, thereby completing the lifting and lowering of the object.
