Cargo Lift / Electric lift

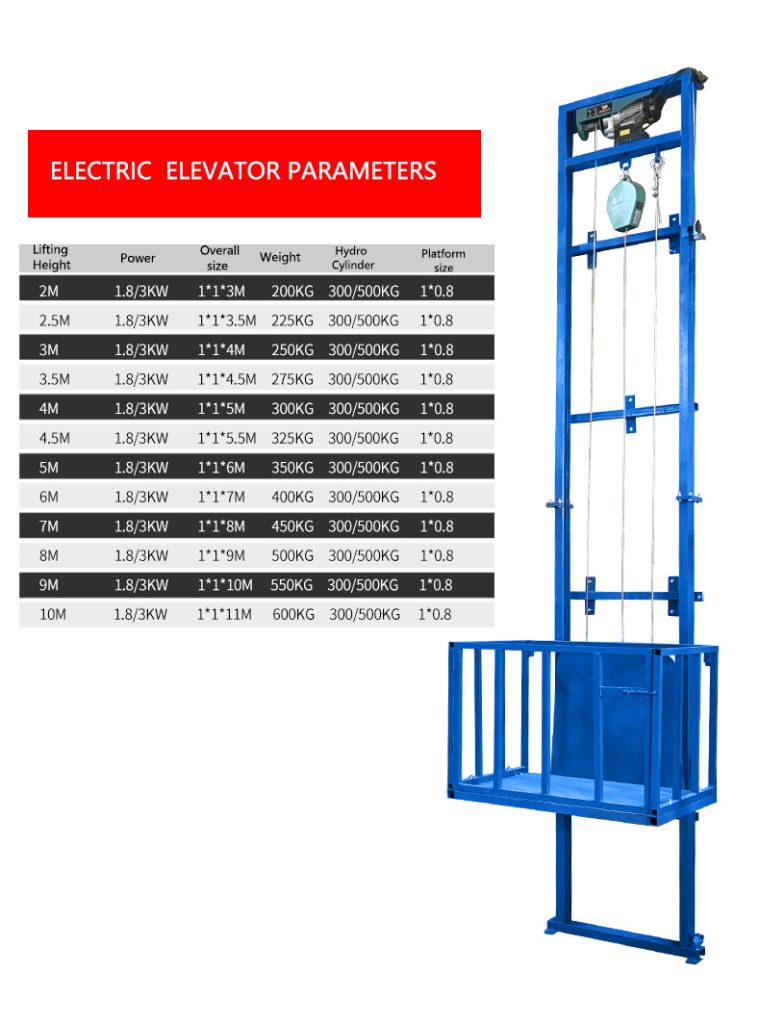

The specifications of small cargo lift need to be customized according to the usage scenario, and the main parameters include:
Load capacity and speed: The standard load capacity covers 500 kilograms to 3 tons, with 500-1000 kilograms commonly used in household or light commercial scenarios, and up to 3 tons in industrial scenarios; The operating speed is generally 0.3-1.5 meters per second. The low-speed type (≤ 0.5 meters per second) is suitable for low rise buildings, while the medium speed type (1-1.5 meters per second) is used for high-frequency transportation. ‌‌

Car and shaft dimensions: typical car width of 1.4-2 meters, depth of 1.7-2.8 meters, height of 2.2 meters; The size of the shaft needs to reserve space, for example, a 1-ton cargo elevator requires a shaft width of 2.25 meters, a depth of 2.2 meters, and a pit depth of ≥ 1.6 meters. ‌‌
Driver type:

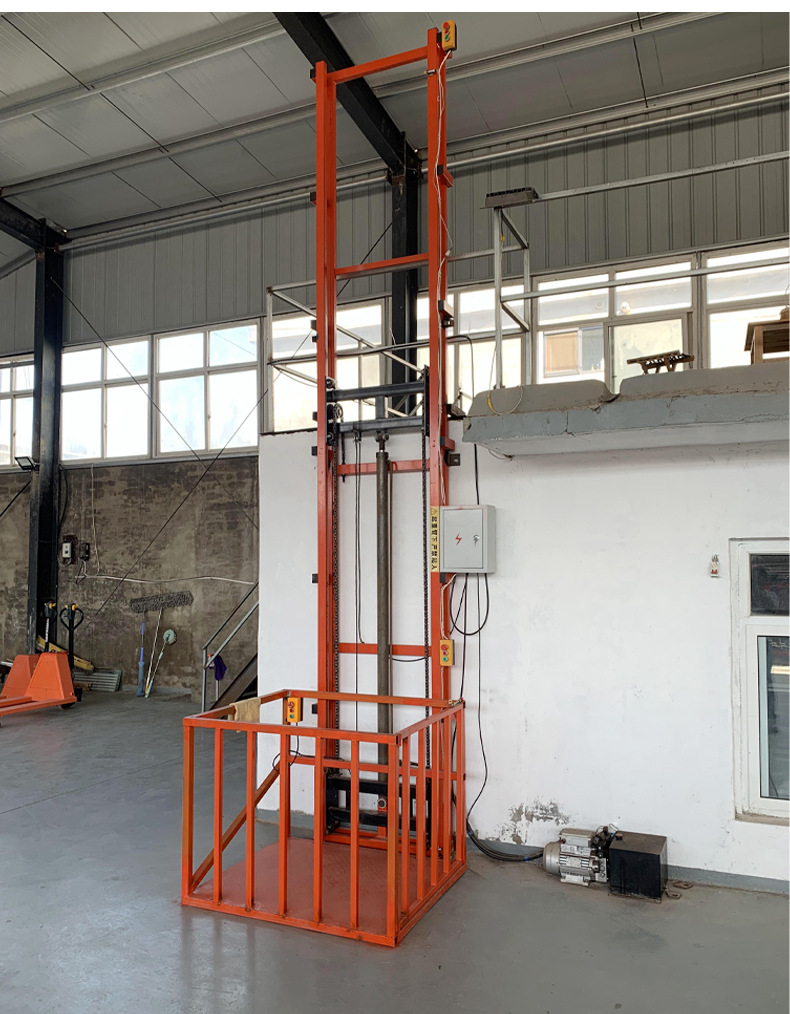

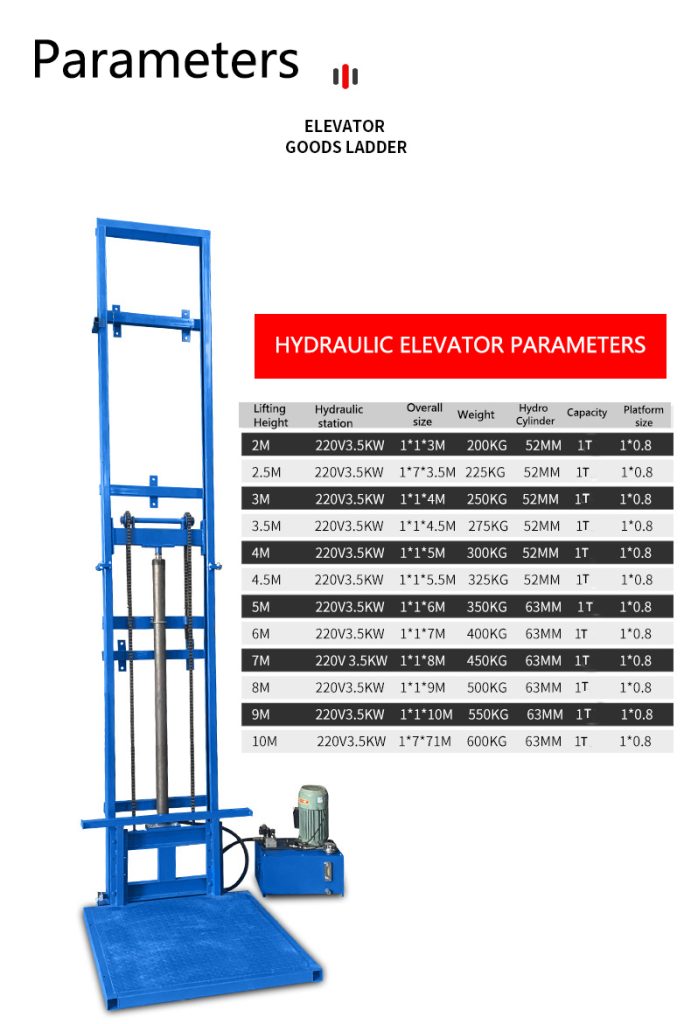

Hydraulic type: suitable for low floors (≤ 6 meters), no machine room required, flexible installation, but high maintenance costs. ‌‌
Traction type: energy-saving by 30%, low noise (<55 decibels), suitable for medium and high-rise buildings. ‌‌
Rail type/scissor type: used for special scenarios (such as bottomless pit shafts), lifting height 1-30 meters, supports customization
